Search Performance Data Visualization Guide for Marketers

Effective search performance data visualization converts raw SEO metrics into clear, decision-ready insights. The core principles are straightforward: focus on business-relevant KPIs, tailor every chart to its audience, and keep dashboards free of clutter. Here is what that looks like in practice:

Simplify, don’t just display. A visualization should answer a specific question, not reproduce a spreadsheet on screen.
Organize by stakeholder level. Executive KPIs sit at the top (organic revenue, overall visibility), performance metrics in the middle (clicks, CTR, rankings), and technical diagnostics at the base (crawl errors, Core Web Vitals).
Tailor to the decision-maker. A CMO and a technical SEO specialist need different views of the same data.
Prevent information overload. Limit each dashboard view to 3–5 metrics tied to specific business questions.
Add date comparisons and annotations. Period-over-period and year-over-year layers give trends context; annotations explain why a spike or drop happened.

Which visualization types work best for search performance data?

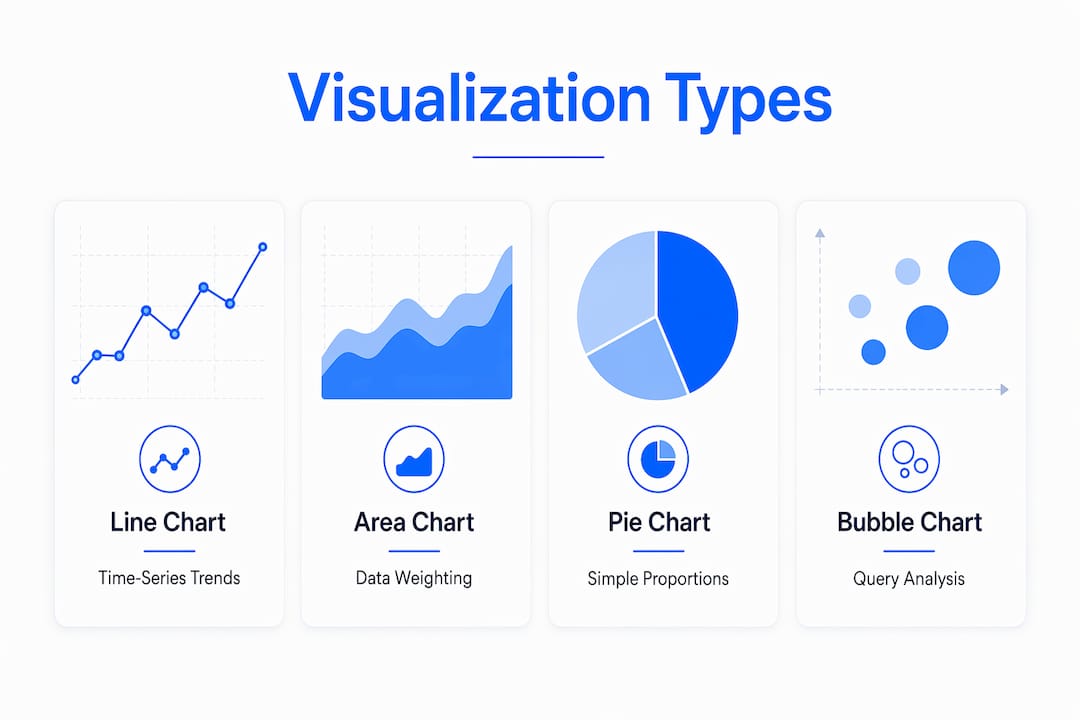

Choosing the right chart type is one of the most consequential decisions in any search performance data visualization guide. The wrong format hides patterns; the right one surfaces them immediately.

Cartesian and time-series charts

Line charts are the default for time-series data. Organic sessions over 90 days, average position trends, and weekly CTR movement all read clearly as line charts because the x-axis maps directly to time. Bar charts work better for categorical comparisons: ranking distribution across keyword groups, or clicks by device type side by side.

Area charts add a layer of visual weight to progression data. A stacked area chart showing the share of keywords in the top 3, top 10, and top 20 positions over time gives a fast read on ranking health without requiring the viewer to do mental math.

Pie and bubble charts

Pie charts have a narrow use case in search analytics. They work for simple proportional splits (mobile vs. desktop share of impressions) but fail when you have more than four or five segments. For complex SEO data with many query categories, a bar chart is almost always clearer.

Bubble charts are genuinely powerful for query-level analysis. Plotting average position on the y-axis, CTR on the x-axis, and using bubble size to represent total clicks lets you see four distinct query groups at once. Queries with high impressions but poor positioning jump out immediately as optimization candidates.

Hands interacting with bubble chart printout

Chart type	Best use case	Key search metrics
Line chart	Time-series trends	Organic sessions, average position, CTR over time
Bar chart	Categorical comparison	Clicks by device, keyword distribution by tier
Stacked area	Progression and share	Ranking distribution (top 3/10/20) over time
Scatter/bubble	Multi-metric relationships	Position vs. CTR vs. impressions per query
Pie chart	Simple proportional splits	Mobile vs. desktop impression share

Pro Tip: A scatter plot using position, impressions, and CTR reveals “opportunity zones” that flat tables simply cannot. Queries ranking in positions 11–50 with high impression volume are your fastest wins.

How does your audience shape the visualization you build?

The same data set should produce different dashboards depending on who reads them. Getting this right is what separates a useful reporting tool from a data dump that nobody opens twice.

Executives need 5–7 high-level commercial metrics: organic revenue, conversion rate, and overall search visibility. Monthly or quarterly cadence is appropriate. Charts should be simple, with clear period-over-period comparisons.
Marketing managers focus on organic sessions, keyword ranking distributions, and brand vs. non-brand traffic splits. Weekly reports with trend lines work well here.
SEO specialists want granular data: query-level CTR, page-by-page position changes, crawl error counts, and Core Web Vitals pass rates. Daily or weekly refresh keeps them current.
Technical teams need the diagnostic layer: indexed pages, crawl budget utilization, redirect chains, and server response codes. Tables and heatmaps suit this audience better than trend lines.

Tailoring reporting cadence to stakeholder roles directly improves how much a dashboard actually gets used. Frequent updates for tactical teams, less frequent for strategic and executive levels. Labeling matters too: every axis, filter, and metric should be named in plain language, not internal shorthand.

What are the best practices for search data visualization?

The most common mistake in search performance dashboards is building a data dump instead of a focused decision-making tool. Avoiding that trap takes discipline.

Start with three business questions. Every metric on the dashboard should answer one of them directly. If a metric does not connect to a question, cut it.
Use visual hierarchy. Place scorecards at the top for a five-second read, trend charts in the middle, and sortable detail tables at the bottom for investigation.
Apply consistent color cues. Green for positive movement, red for decline, gray for neutral context. Switching color meanings between sections creates confusion.
Add interactivity. Filters by device, country, or query type let viewers drill into the data without needing a separate report. Drill-down capabilities keep a single dashboard useful across multiple questions.
Annotate every significant event. Algorithm updates, site migrations, and campaign launches should appear as vertical markers on time-series charts. Without them, a traffic drop looks like a performance failure when it may be a known technical event.

Pro Tip: Balance lagging indicators (total organic sessions, revenue from search) with leading indicators (featured snippet acquisitions, ranking tier distribution). Lagging metrics tell you what happened; leading metrics tell you where you are headed.

Comparison layers like period-over-period and year-over-year tracking add essential context. A traffic dip in february looks alarming in isolation but normal when compared to the same week last year.

How do you turn raw search data into a useful dashboard?

Follow these seven steps to move from a raw data export to a dashboard that drives real decisions.

Define your business questions. Write down three specific questions the dashboard must answer before you open any tool. Example: “Which pages are losing ranking position this month?”
Connect your data sources. Pull Search Console performance data for queries, pages, CTR, and average position. Add GA4 for organic sessions, conversions, and revenue. Include crawl stats for technical health.
Clean and segment the data. Filter out branded queries if you need non-brand performance. Segment by device, country, and page template before drawing any conclusions. Segmentation by query type is critical; aggregated totals often mask opposing trends in subgroups.
Choose chart types to match your data. Time-series data gets line charts. Categorical comparisons get bar charts. Multi-metric query analysis gets scatter or bubble charts.
Build your dashboard in layers. Top layer: 3–5 scorecards for executive KPIs with period-over-period change. Middle layer: 2–3 trend charts covering traffic, rankings, and conversions. Bottom layer: sortable tables for top pages, top queries, and technical issues.
Add comparative periods and annotations. Set up both a prior-period comparison and a year-over-year view. Mark algorithm updates and site changes directly on the charts.
Automate refresh and set up alerts. Automated alerts for traffic drops, crawl error spikes, or Core Web Vitals failures reduce manual monitoring and speed up response time. Schedule PDF delivery for stakeholders who do not log in regularly.

Pro Tip: When building a Search Console performance dashboard, use Looker Studio’s calculated fields to create an “opportunity score” that combines average position, impressions, and CTR into a single sortable column. This surfaces your highest-potential queries without manual filtering.

Expert insights on structuring effective SEO performance dashboards

The three-layer pyramid model is the clearest framework for structuring a search performance dashboard. Executive KPIs occupy the top, performance metrics fill the middle, and technical health sits at the base. Each layer answers a different question: “Are we growing?” at the top, “Where is growth coming from?” in the middle, and “Is anything broken?” at the base.

Mixing incompatible data sources is the fastest way to create internal disputes. Search Console and GA4 measure different things. Search Console tracks what happened in Google Search (impressions, clicks, position). GA4 tracks what happened after the click (sessions, conversions, revenue). Collapsing both into a single “organic traffic” number produces a figure that neither team can defend.

Dashboard layer	Primary source	Key metrics	Audience
Executive KPIs	GA4	Organic revenue, conversion rate, visibility	C-suite, directors
Performance metrics	Search Console	Clicks, impressions, CTR, average position	Marketing managers, SEO leads
Technical health	Crawl stats, Search Console	Crawl errors, index coverage, Core Web Vitals	SEO specialists, developers

Segmenting queries and pages before drawing conclusions prevents misleading reads. A site with strong e-commerce queries and weak informational queries will show a flat average position that masks both trends. Separate them and you see two very different stories.

Serpview addresses a specific structural limitation here. Google Search Console caps its standard export at 1,000 rows, which means large sites lose visibility into the long tail. Serpview consolidates data across multiple properties and surfaces up to 50,000 rows, so your combined analytics view captures the full query distribution rather than just the top performers. Customizable filters, real-time updates, and benchmarking against industry standards give teams a reporting foundation that scales with the site.

Why do data characteristics determine your visualization approach?

Not all search data behaves the same way, and the characteristics of your data should drive every formatting decision you make.

Volume and distribution matter first. A site with thousands of long-tail keywords needs a different visualization strategy than one with fifty high-volume head terms. Long-tail data is sparse and noisy; aggregating it by topic cluster or page template before charting produces cleaner signals than plotting every query individually.

Cardinality (the number of unique values in a dimension) affects chart legibility. A pie chart with 20 query categories is unreadable. A bar chart sorted by clicks handles 20 categories cleanly. When cardinality is very high, scatter plots and heatmaps scale better than traditional bar or line charts.

Data freshness shapes which chart type fits. Near-real-time data suits live monitoring tables and scorecards. Historical trend data suits line and area charts. Mixing a real-time metric with a two-day-lag metric in the same trend line creates a misleading visual gap at the right edge of the chart.

How do you handle anomalies and outliers in search metrics?

Anomalies in search performance data are almost always meaningful, but they are easy to misread without the right context.

The first step is distinguishing a true anomaly from a data artifact. A sudden CTR spike on a single day often reflects a data sampling issue in Search Console rather than a real behavioral shift. Cross-reference the same date in GA4 organic sessions. If sessions did not move, the CTR spike is likely noise.

For genuine outliers, annotating the dashboard is the most practical response. Mark the date of a Google core update, a site migration, or a server outage directly on the chart. Without that marker, a future analyst will spend hours trying to explain a drop that has a simple, documented cause.

Outlier queries deserve their own treatment. A query that suddenly generates ten times its normal impressions may indicate a trending topic, a featured snippet win, or an indexing anomaly. Isolate it in a filtered view rather than letting it distort your aggregate CTR. Serpview’s custom annotations feature lets you record these events directly on the dashboard so the context travels with the data.

Which tools should you use to visualize search performance data?

The right tool depends on your data sources, your team’s technical comfort, and how much customization you need.

Looker Studio (formerly Google Data Studio) connects directly to Google Search Console and GA4 at no cost. It handles most standard dashboard needs: trend lines, scorecards, bar charts, and basic scatter plots. The learning curve is moderate, and the template library covers most common SEO reporting layouts. For bubble chart analysis, Google’s own Search Console bubble chart guide provides a ready-made Looker Studio template.

Google Search Console’s Performance report is the starting point for any search analytics visualization. It surfaces clicks, impressions, CTR, and average position by query, page, country, device, and date. The built-in charts are limited but reliable for quick trend checks.

GA4 handles the outcomes layer: organic sessions, conversion events, and revenue attribution. Its Exploration reports support custom funnels and cohort analysis that standard dashboards cannot replicate.

Serpview fills the gap that standard tools leave open. Its unified dashboard pulls data across multiple Search Console properties, removes the 1,000-row cap, and delivers up to 50,000 rows of query data. For agencies and large sites managing multiple domains, that scale changes what is visible. The shared dashboard feature also makes client reporting cleaner, with live data accessible without exporting files.

For teams that need to connect search data to broader business intelligence, platforms built for IT and SaaS decision-makers, like those described at EverythingCloud, offer methodologies for keeping dashboards focused as decision tools rather than data repositories.

How do you integrate search data with other marketing data?

Search performance data tells one part of the story. Connecting it to paid search, email, and social data gives you the full picture of how organic fits into the marketing mix.

The cleanest approach uses a consistent UTM taxonomy. Every non-organic channel should tag its traffic with source, medium, and campaign parameters so GA4 can separate it cleanly from organic. Without that discipline, direct and organic traffic bleed into each other, and your organic conversion rate becomes unreliable.

For cross-channel dashboards, build separate data layers before combining them. Keep your Search Console performance layer, your GA4 outcomes layer, and your paid media layer as distinct data sources. Join them at the campaign or page level, not at the session level, to avoid double-counting. Mixing incompatible sources into aggregated metrics generates the kind of confusion that turns reporting meetings into arguments about measurement methodology.

A practical integration pattern: use a top-level scorecard row showing organic, paid, and email traffic side by side with their respective conversion rates. Below that, each channel gets its own trend chart. This layout gives executives a cross-channel view while preserving the integrity of each data source. Serpview’s tag-based combined analytics supports this kind of multi-source view without requiring manual data joins.

Key Takeaways

Effective search performance visualization requires separating data layers, matching chart types to data characteristics, and tailoring every view to its audience.

Point	Details
Use the three-layer pyramid	Separate executive KPIs, performance metrics, and technical health into distinct dashboard layers.
Match chart type to data	Use line charts for trends, bar charts for comparisons, and bubble charts for multi-metric query analysis.
Segment before concluding	Split data by query type, device, and page template to avoid misleading aggregate reads.
Annotate every event	Mark algorithm updates and site changes on charts to prevent misattributing natural shifts.
Keep sources separate	Never mix Search Console and GA4 into a single aggregated metric; they measure different things.

FAQ

What is the best chart type for search performance trends?

Line charts are the best choice for time-series search data like organic sessions, average position, and CTR over time. For multi-metric query analysis, bubble charts plotting position, impressions, and CTR together reveal optimization opportunities that flat tables cannot show.

How many metrics should an SEO dashboard include?

Start with three specific business questions and include only the metrics that directly answer them. Dashboards focused on 3–5 key metrics drive better decisions than those that display every available data point.

Why should Search Console and GA4 data stay in separate layers?

Search Console measures what happened in Google Search (impressions, clicks, position), while GA4 measures what happened after the click (sessions, conversions, revenue). Mixing these sources into a single metric creates figures that neither SEO nor analytics teams can accurately interpret or defend.

How do you handle a traffic anomaly in a search dashboard?

Cross-reference the anomaly across both Search Console and GA4. If only one source shows the spike, it is likely a data artifact. If both confirm it, annotate the date with the known cause (algorithm update, site change, or campaign launch) so the context stays attached to the data.

What is the difference between lagging and leading indicators in SEO dashboards?

Lagging indicators like total organic sessions show what already happened. Leading indicators like featured snippet acquisitions or ranking tier growth signal where performance is heading. A balanced dashboard includes both types to support both reporting and forward-looking planning.
